Our high-precision laser tube cutter delivers exceptional accuracy, speed, and flexibility, achieving results that reduces the requirement for secondary processing. From custom components to large volume repeat parts, we can achieve precise, high-quality outcomes for you.
Material can be provided, or supply your own.
Call us today to discuss your welding and fabrication requirements
Capabilities

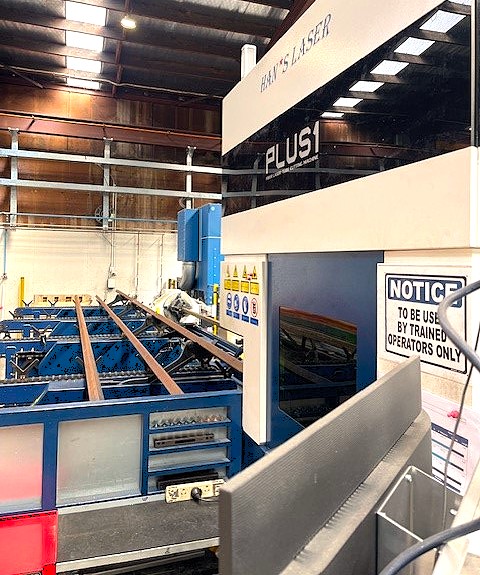

High speed CNC tube cutter with both a standard and tip nozzle cutting head
Max tube length – up to 8m

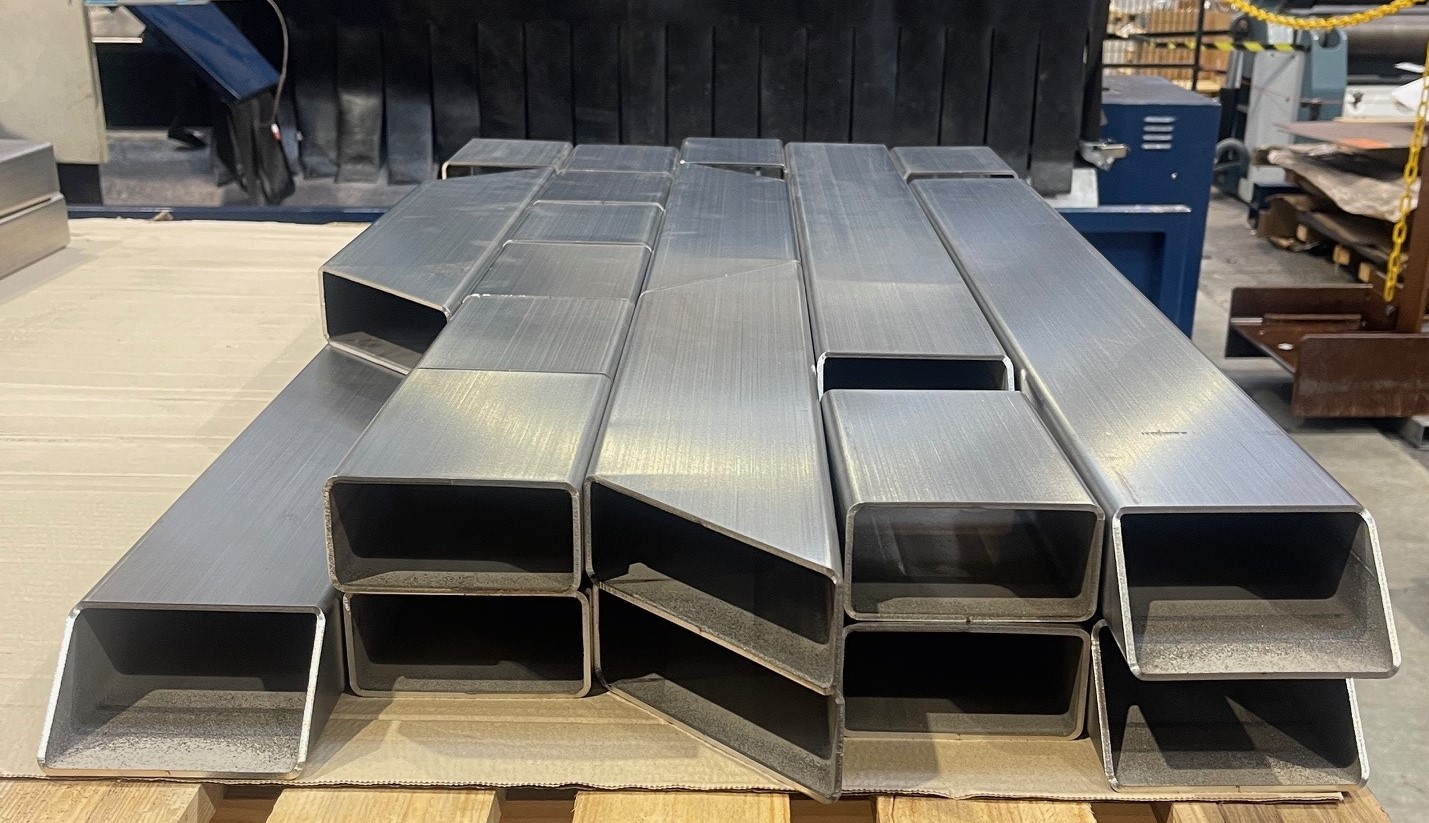

Square Tube
Up to 150 x 150, and 8mm thick

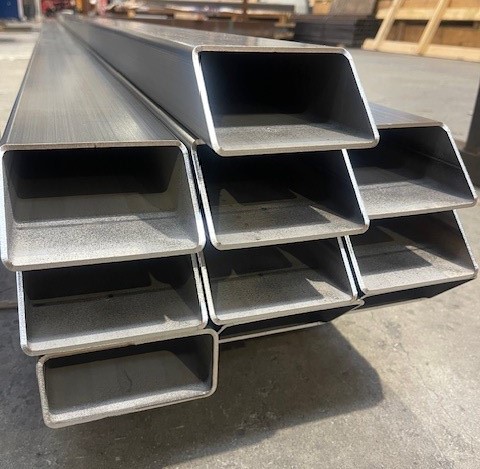

Rectangular Tube
Up to 200 x 100, and 8mm thick

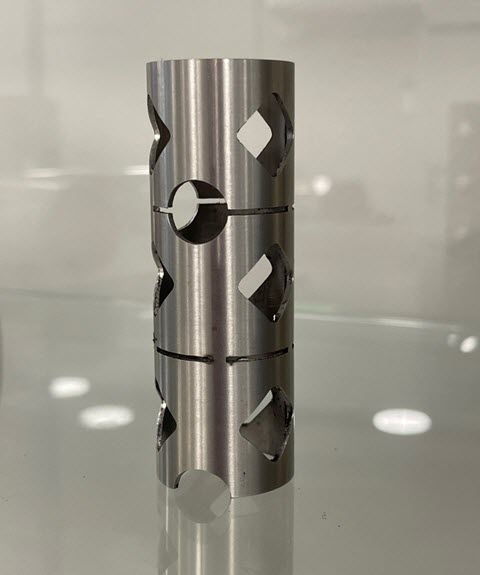

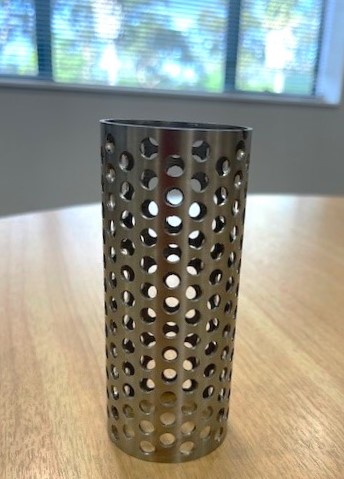

Round Tube
From 16 to 250 diameter, and 8mm thick
Channel or U Profile
Up to 150 x 100, and 8mm thick
Angle or L Profile
Up to 150 x 150, and 6mm thick
Flat Bar
Up to 150, and 6mm thick
Tolerance
Holes +/- 0.25
